P50 USB Media Player with MIDI



VOXOA P50

The P50 USB Media player is packed with features. Play direct USB, or use as a USB MIDI controller. The LINK feature allows interconnection of 2 or more units



FEATURES

Player
- Link up two players
- Automatic and manual tap beat counter
- Sleep function for reducing power consumption

Media Types
- Support for MP3 playback with text display
- 2 USB sockets for external USB device support
- All control elements are MIDI compatible
- A, B deck switchable MIDI setup
- ID3 TAG support



Playback
Instant start via 1 bit technology (8 fold)
- Next Track pre-selection track function
- Instant playback from cue point
- Fader start to control playback on fader move
- Relay play function
- Single and Continuous play modes
- Vinyl emulation with adjustable Start /Brake Speed
- Reverse play mode for special effects
- Cue Play function can back to cue and play instantly

Data Search
- Track and folder searching system
- Search/Scan via large jog wheel
- Frame search for precisely searching
- VOXOA TUNEBOX software for fast searching massive USB device
- Onboard file and folder browsing

Cues/Loops
- Innovate A.C.P. Active Cue Point indicator system
- Auto cue function cues track to start of music
- Seamless loop function / reloop function
- Loop out point real-time adjustment
- 4 independent hot cues/loops banks with real-time adjustment
- Auto Loop function with 11 selectable bar lengths
- Every track can save 4 hot cues/loops, unlimited for USB drive
- 4 independent 5 second samples with pitch and volume adjustable

Pitch Control
- Adjustable pitch range ±6%, ±10%, ±16% and ±100%
- High quality 100 mm long pitch fader
- Micro pitch with a resolution up to 0.02%
- Pitch bend up to ± 100%
- Key Lock allow a track’s tempo to be changed without affecting the original key of the track

Jog Wheel
- Touch sensitive jog wheel for scratching
- Jog wheel lighting ring provides instantaneous visual feedback
- Jog Wheel illumination with 9 different modes
- Multifunctional jog wheel for frame search, pitch bend, sample adjustment and effects adjustment
- 3 modes for jog wheel: Normal CDJ, Scratch, Cue Scratch
- A Cue Scratch mode – touch wheel return-to-cue function

Effects
- 3 superb beat synchronized digital effects
- Build-in Effects: Echo, Flanger, Filter
- Effect parameters Time and Depth adjustable via Jog Wheel
- Beat select/bank button

Display
- Especially bright dot-matrix VFD display for all functions
- Large extra bright display for all important functions
- Display playing address
- Elapsed/remain time display
- Displays text for ID3 tags and folder names for easy navigation
- Text display for navigating folders on MP3 CDs and USB flash drives

Output
- Digital S/PDIF output
- Headphones output with volume control
- Analog RCA outputs

VOXOA P50 - THE CD ERA IS FINISHED!

The P50 USB Media player is packed with features. Play direct from USB, or use as a USB MIDI controller. The LINK feature allows interconnection of 2 or more units

The P50 is based on the P70 design, however many of us no longer have the need or desire to use CD, so why pay for the extra hardware when USB is so much better.

The P50 is a full featured media player that can play audio directly from USB. It has a LINK feature so you can share a single USB source on two P50 units. VOXOA TUNEBOX is a free application that can help you organize your files on USB and will help to speed up the loading process.

The Active-Cue-Point system assists the DJ by making a visual marker on the jog wheel that shows the length and position of the loaded sample making it easy to scratch with accuracy

FEATURES

2 USB sockets for external USB device support

All control elements can me MIDI mapped

Four independent 5-seconds sample bank

Four Cue Points instant trigger

Multi-function jog-wheel with 9 lighting display modes



The innovative Active-Cue-Point indicator system

Three digital beat sync effects built in Echo, Flanger, Filter

Auto-Loop with 11 lengths to select

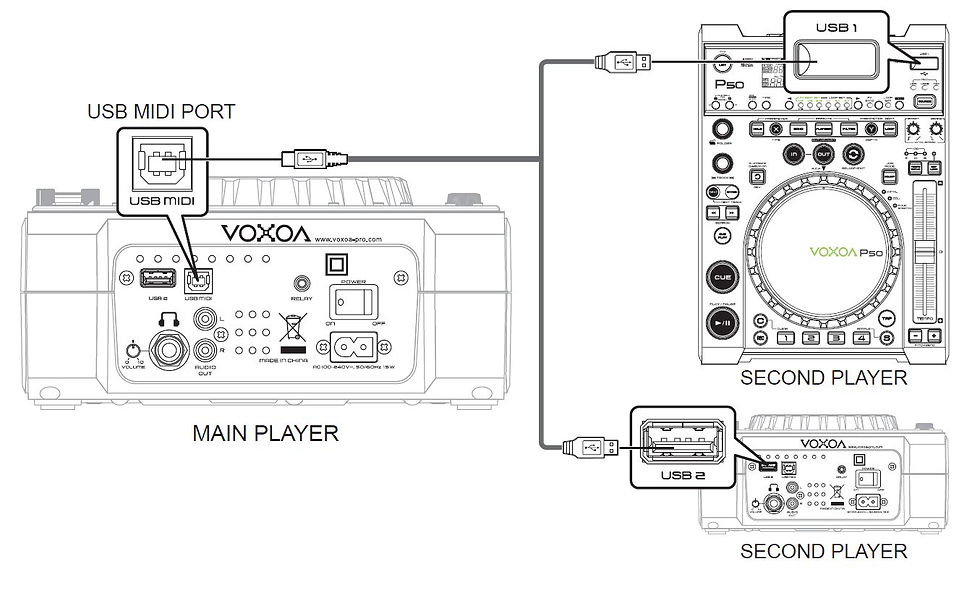

LINKUP Technology for linking two or more P50 units together

VOXOA TUNEBOX music database builder software

Specs:

Voltage: AC 100V - 240V,50/60Hz

Power: 15W

Weight: 1.4Kg

Dimension: 296 (w) X 218 (d) X 103.5 (H)

USB Media: MP3/WAV

Frequency Response: 17Hz - 20kHz

S/N Ratio: 126dB Typical

Output: RCA, Digital Out, Headphone Out



SUMMARY:

The Good: Solid design. 2 USB memory ports. Built-in Effects. Illuminated Jog wheel. MIDI connection features.

The Bad: Basic player, probably not suitable for Pro-Club use

without having to part with some big bucks party's player for at home or in a portable setup. Full of great features to get you making some great low cost Proven design. This would be a great all ready.

The Bottom Line: For a beginner or mobile DJ, there are great little players. Compact and sturdy.
